Automatic Glass Tempering Furnace
This Automotive Glass Tempering Furnace is used for convection heating and rapid quenching tempering of automotive glass, enabling large-scale production that improves glass strength and enhances safety performance.
Advantage
High Flatness Control
The upper and lower quenching air grilles are independently controlled by a PLC, achieving precise airflow matching, reducing glass deformation, and maintaining consistent flatness.
Uniform Temperature Field Control
A rational layout of heating wires and intelligent zoned power adjustment reduces temperature fluctuations within the furnace, ensuring stable tempering quality.
High Reliability Operation
The use of a Vesuvius ceramic roller conveyor and a Panasonic PLC control system enhances the equipment's high-temperature resistance and long-term operational stability.
Low Stress Spot Structure Design
A rational arrangement of air vents combined with a roller conveyor oscillation structure avoids localized stress concentration, reducing the risk of optical distortion.
Parameter
|
model |
Max glass size |
Min glass size |
Thickness of glass |
Heating (KW) |
Quench (KW) |
|
MF-FJ1625 |
1600X2500 |
150X250 |
4-19 |
260 |
132 |
|
MF-FJ1836 |
1800X3600 |
150X300 |
390 |
132 |
|
|
MF-FJ2030 |
2000X3000 |
150X350 |
360 |
200 |
|
|
MF-FJ2436 |
2440X3600 |
150X350 |
600 |
250 |
|
|
MF-FJ2442 |
2440X4200 |
150X350 |
650 |
250 |
Application
Automotive Glass Tempering Furnace is suitable for processing:
- Automotive side glass
- Rear window glass
- Screen-printed glass
- Low-E glass (online/offline, E=0.02)
- Ultra clear glass
- Tinted glass
- Pattern glass
Product Details
Manufacturing Strength & Quality Control
We implement a strict workshop process management to ensure stable machine performance.
A large raw material warehouse with rust removal facilities ensures a stable supply and controlled material quality.
Over 90% of mechanical components are manufactured in-house through our CNC machining center, allowing better control of accuracy, lead time, and overall equipment reliability.

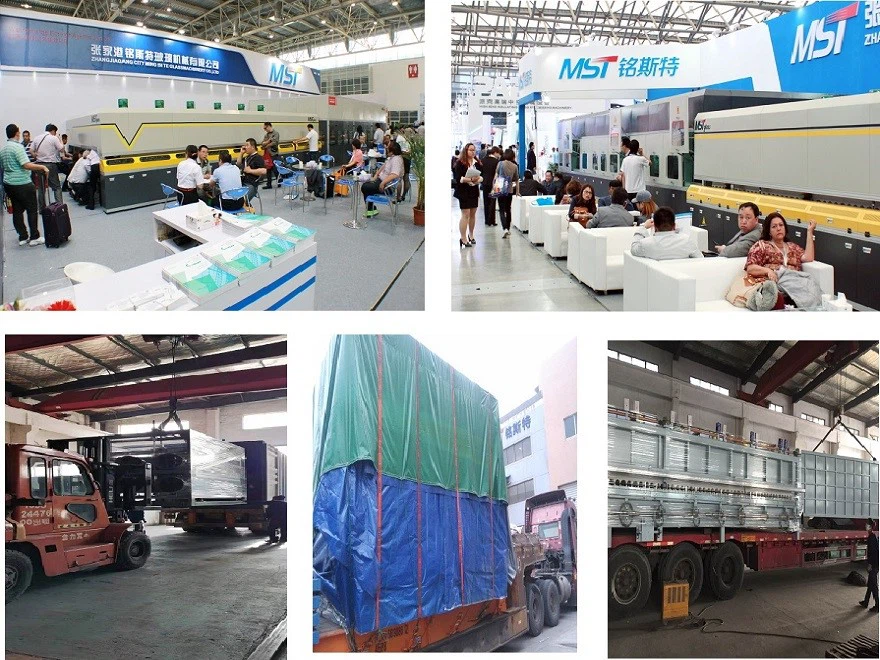

Packaging, Delivery, and Services
Packaging: the export wooden box.
Shipping: by sea, air, or express
Delivery time: about 60~90 days after order details and production are confirmed.
Service:
- 1-year warranty for the whole machine
- 24-hour technical support via email or online communication
- English software, operation manual, and training videos
- On-site installation and training available
- Flexible payment terms: T/T, L/C, Western Union, PayPal
FAQ
Q: What is the production capacity of the furnace?
A: Production capacity depends on glass size and thickness. We provide a customized configuration based on your daily output requirement.
Q: Can the furnace process automotive Low-E glass?
A: Yes. It supports both online and offline Low-E glass (E=0.02).
Q: How do you ensure glass flatness?
A: Independent upper and lower quench control, combined with precise temperature regulation, ensures stable flatness performance.
Q: What core components are used?
A: The system uses Vesuvius ceramic rollers and a Panasonic PLC for reliable industrial operation.
Q: What support is provided after installation?
A: Technical support is available remotely, and on-site installation and training services can be arranged when required.
