Glass Cutting Machine

Glass Cutting Machine – High Precision & Fully Automated Glass Processing Solutions

Our Glass Cutting Machines are designed for industrial-scale production. They deliver high accuracy, stable performance, and optimized material utilization. Suitable for architectural glass, home appliance glass, automotive glass, and solar glass processing.

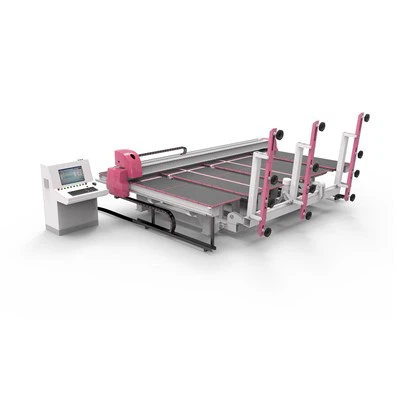

Automatic Glass Cutting Machine
The equipment is analyzed by professional structural software to ensure the stability of the machine, the dynamic balance, the strength of the mechanics to achieve the perfect match, and to ensure that the structure of the equipment is...
view more

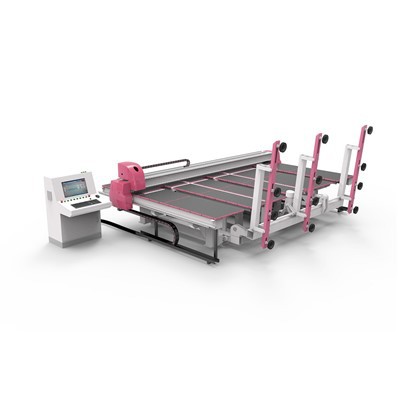

CNC Glass Cutting Machine
The equipment is analyzed by professional structural software to ensure the stability of the machine, the dynamic balance, the strength of the mechanics to achieve the perfect match, and to ensure that the structure of the equipment is...
view more

Specification

Equipment dimensions	4400mm*3140mm	Equipment weight	3T
Max Glass size	3660mm*2440mm	Height	800mm±50mm
Glass Thickness	3~19mm	Oil supply method	Pneumatic automatic oil filling
Cutting Speed	0~180m/min	Power supply	380V/50HZ
Straight line parallelism	≤±0.25mm/m	Equipment power	11KW
Diagonal accuracy	≤±0.30mm/m	Compressed air	0.6MPa
Loading Arm	3	Cutting Holder	The cutter head can be rotated 360° (can accurately cut any straight line and various shaped glass)

Why Our Machine Is Different

Key Factors	Our Machine	Typical Suppliers
Cutting Accuracy	±0.15 mm stable	±0.2–0.3 mm unstable
Optimization Rate	+5% to 10%	No optimization or low efficiency
Failure Rate	Low, tested system	Unstable, frequent downtime
Software	Smart & easy	Complex or outdated
After-Sales	24h response	Slow or unclear

Designed for Your Industry

Architectural Glass

High precision for large panels. Stable performance for continuous production.

Furniture Glass

Smooth edges reduce polishing work.

Appliance Glass

Perfect for high-volume standardized cutting.

Automotive Glass

Supports complex shapes and high accuracy requirements.

Glass Types Our Cutting Machine Can Process

Float Glass
Standard flat glass used in most industries.

Laminated Glass
Multi-layer glass with interlayer (PVB or EVA).

Tempered Glass (Before Tempering)
Glass can be cut before tempering process only.

Ultra-Thin Glass
Thin glass with high precision requirements.

Thick Glass
Supports glass thickness up to 19 mm (customizable).

What Can Be Customized

Glass Size & Working Area
We adjust the machine table size based on your glass dimensions.

• Standard sizes available
• Oversized glass supported
• Custom table layout for large panels

Glass Thickness & Type
Different glass types require different cutting configurations.

• Float glass
• Laminated glass
• Coated glass

Automation Level

• Semi-automatic system
• Fully automatic cutting line
• Loading + cutting + breaking integration

FAQ

Q: What is the maximum glass thickness supported?

A: Standard machines support glass thickness from 2 mm to 19 mm.

Q: What is the cutting speed?

A: Maximum cutting speed reaches 200 m/min. Actual speed depends on glass type, thickness, and cutting shape.

Q: Is the machine fully automatic?

A: We offer both semi-automatic and fully automatic systems.Fully automatic solutions can include:Glass loading、CNC cutting and Automatic breaking.

Q: Does the machine include optimization software?

A: Yes, the machine is equipped with intelligent optimization software. It improves glass utilization by 5%–10%, reducing material cost significantly.

Q: What is the service life of the machine?

A: With proper maintenance, the machine typically lasts 8–10 years. Stable structure and high-quality components ensure long-term performance.

As one of the most professional glass cutting machine manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale customized glass cutting machine made in China here from our factory.
