China Glass Grinding Machine Manufacturers Suppliers Factory - Customized Service

Glass Grinding Machine Manufacturer

Glass Grinding Machines are essential equipment in glass processing, used to grind, smooth, and polish glass edges to achieve high precision, safety, and surface quality.

They are widely applied in industries such as architectural glass, furniture glass, automotive glass, and decorative glass manufacturing.

Glass Double Edger Grinding Machine
The high precision, heavy load motor base is processed by CNC machine, it is with the characters of stable, durable and higher grinding efficiency. The ammeter is close to the grinding motor handwheel meter to facilitate the observation...
view more

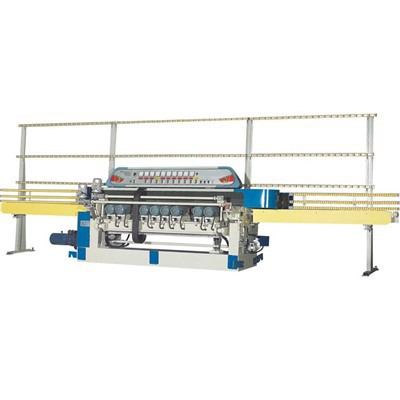

Glass Straight-line Beveling Machine
Glass straight line beveling machine adopts stable and accurate double dovetail front beam lifting and three-row chain splint patented technology, equipped with precision ABB grinding head special motor, supplemented by high-efficiency...
view more

Specification

Upper and lower grinder dimensions	￠1160X￠377X50mm
Max diameter of planet wheel	￠434mm
Planet wheel parameters	Teeth =84, modulus =16
Number of planet wheels	5pcs
Modified wheels	3pcs
Min grinding/polishing thickness	0.3mm
Max grinding/polishing thickness	25mm
Lower grinder speed	0～50rpm
Upper grinder speed	0～40rpm
Air pressure	0.5-0.6Mpa
Upper grinder lifting cylinder diameter	￠160
Lifting distance of inner and outer ring	0-40mm
Main motor power	9.2Kw
Sun wheel motor power	1.5kw
Upper grinding disc motor power	7.5kw
Feeding sand pump power	150w
Lifting motor power	400w
The lower grinding plate beat	0.06mm
Flatness of lower grinding plate	0.03m
Machine size	192015002700mm
Machine weight	4800kg

Key Features

High Precision Edge Grinding
Advanced grinding system ensures consistent edge accuracy and smooth surface finish.

Stable and Durable Structure
Heavy-duty machine body reduces vibration and guarantees long-term stability.

High Efficiency Processing
Multi-head grinding design increases processing speed and production output.

Automatic Control System
PLC or CNC control simplifies operation and ensures consistent performance.

Manual vs Automatic Grinding Machine

Feature	Manual Machine	Automatic Machine
Efficiency	Low	High
Labor Requirement	High	Low
Precision	Medium	High
Production Scale	Small	Medium to Large

Quality Compliance & Safety Standards

Your safety and legal compliance are our priority. All glass grinding machines are:

CE Certified: Fully compliant with European Machinery Directives.

UL/CSA Compatible: Electrical cabinets can be wired to meet North American UL/CSA safety codes upon request.

Water-Proofing: IP55 rated protection for all critical electronic components.

Professional Support

Remote Diagnostics

80% of PLC-related issues are resolved via our secure remote login portal, keeping your production line moving.

Spare Parts Logistics

We maintain a dedicated inventory of diamond wheels, resin wheels, and suction cups ready for 48-hour global dispatch.

Installation & Training

We provide comprehensive English-language video manuals and, if required, on-site commissioning by our factory-trained engineers.

FAQ

Q: How to choose the right glass grinding machine?

A: It depends on glass type, size, and production capacity. We provide customized solutions.

Q: What glass thickness can be processed?

A: Typically from 3 mm to 25 mm.

Q: Is the machine suitable for continuous production?

A: Yes, especially automatic models.

Q: Do you provide installation and training?

A: Yes, remote and on-site support are available.

As one of the most professional glass grinding machine manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale customized glass grinding machine made in China here from our factory.
