Glass Washing Machine

Glass Washing Machine Manufacturer

As a professional glass washing machine manufacturer, we design and supply industrial glass cleaning equipment for architectural glass, furniture glass, automotive glass, and solar glass production lines.

Horizontal Glass Washing and Drying Machine
High speed glass washing machine factory, Inverter for transmission. PLC and touch screen as option. Working speed is 1-8m/min and it’s adjustable.
view more

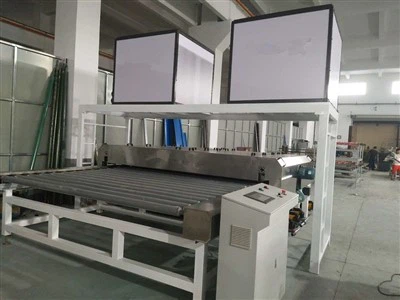

Glass Cleaning and Drying Machine
Low- E glass washing machine factory, high speed 1-12m/min.aluminium structure, 3 pairs brush and PLC control.
view more
Low-e Glass Washer
Horizental glass washing and drying machine suppliers, Low-E glass, aluminium structure, 3 pairs brush and air knives, with prewashing system.
view more
High Speed Glass Washing Machine
Glass washing and drying machine manufacturers, Low-E glass,aluminium and steel structure, with pre-washing system, stainless steel pipe.
view more

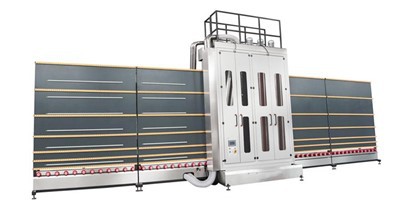

Vertical Glass Washing Machine
Architectural, Digital printing, laminating, Shower door, Coating
view more

Specification

Max glass size	2440mm
Min glass size	300*450mm
Thickness	3-19mm
Speed	Thickness of glass: 5mm,Vmax=12m/min Thickness of glass: 6-25mm, Vmax=6-8m/min
Total power	38kw
Blower power	22kw
Brush	3 pair of bruch The third upper brush is soft for low-e glass
Roller diameter	70mm
Water tank	3unit of stainless steel
Water pump	3 set, circulating water
Air knives	3 pair of straight blow knife with inclined mouth
Screw lifting with motor	Motorized up and down in washing and drying part, can be elevated max, height 450mm
Table height	850±50mm
Machine size	L5550W3200H900mm
Weight	3600kg
Power supply	380v, 50hz, 3 phase

Horizontal Glass Washing And Drying Machine

Features of Glass Washing Machine

Stable Cleaning Performance
Combines spray washing and multi-brush system to remove dust, oil, and fine particles effectively. Ensures consistent cleaning quality for different glass types.

High Production Efficiency
Adjustable conveyor speed allows seamless integration with cutting, edging, and tempering lines, improving overall production flow and output capacity.

Efficient Air Knife Drying
High-pressure air knives remove water completely from the glass surface, preventing stains and ensuring a clean, dry finish for further processing.

Working Principle of Glass Washing Machine

The cleaning process consists of three main stages:

Pre-Washing Section

High-pressure water removes heavy dust and particles from the glass surface.

Brushing Section

Rotating brushes clean both sides of the glass with controlled pressure for deep cleaning.

Drying Section

Air knife system removes all moisture to ensure a completely dry and clean surface.

Applications

Our glass washing machines are widely used in:

Architectural glass processing plants
Furniture glass manufacturing
Automotive glass production
Solar glass cleaning systems
Industrial glass fabrication lines

Glass Washing Machine vs Manual Cleaning

Item	Manual Cleaning	Glass Washing Machine
Cleaning Quality	Depends on worker skill, unstable results	Stable and consistent cleaning for every glass piece
Efficiency	Low, not suitable for mass production	High-speed continuous operation
Labor Requirement	High labor dependency	One operator can manage the line
Production Consistency	Varies between shifts and operators	Fully controlled and stable process
Risk of Defects	High risk of water marks, scratches, contamination	Low defect rate with controlled washing & drying
Suitable Glass Types	Basic or small-scale glass only	Architectural, furniture, automotive, solar glass
Automation Level	Fully manual process	Fully automatic or semi-automatic integration
Operating Cost	High long-term labor cost	Lower long-term operational cost
Production Line Integration	Not applicable	Easily integrates with cutting, edging, tempering lines
Overall Performance	Limited and unstable	Industrial-grade stable production solution

FAQ

Q: Can it clean coated glass?

A: Yes, it is suitable for Low-E and coated glass without surface damage.

Q: Is the drying system efficient?

A: Yes, the air knife system ensures fast and complete drying without water marks.

Q: Do you provide installation support?

A: Yes, we provide remote guidance and optional on-site support.

Q: Can it be customized?

A: Yes, all parameters can be customized according to production requirements.

Q: What is the delivery time?

A: Typically 30–60 days depending on configuration.

As one of the most professional glass washing machine manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale customized glass washing machine made in China here from our factory.
