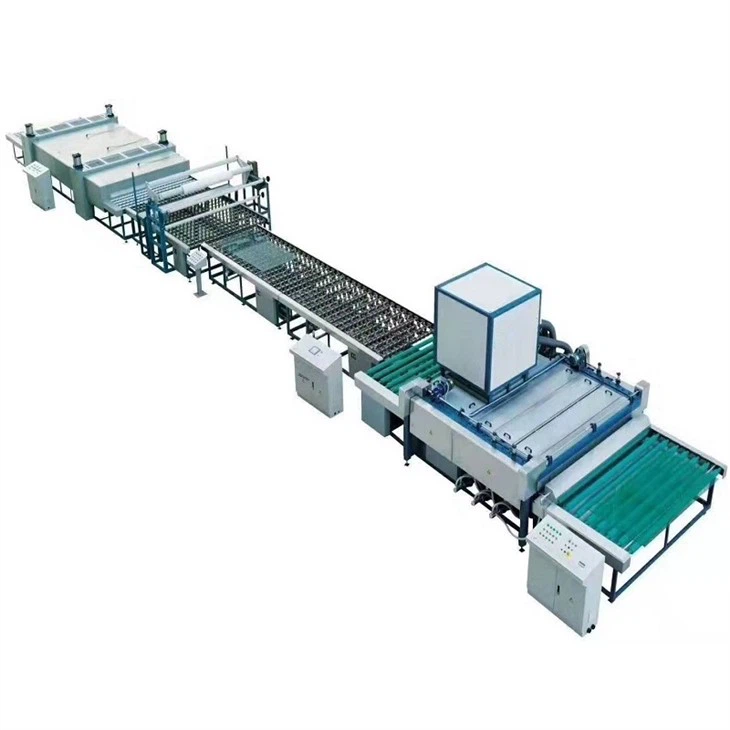

Automatic Laminated Glass Production Line

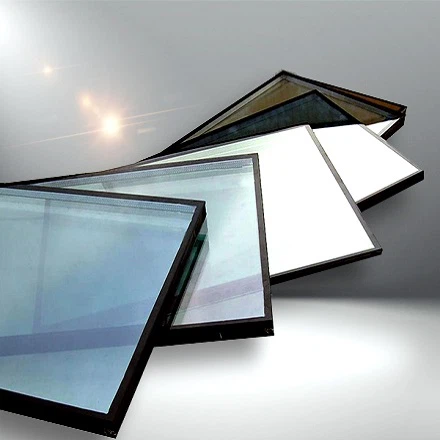

The Automatic Laminated Glass Production Line can process glass with a maximum size of 2500×6000mm and a thickness of 3–19mm, suitable for the production of architectural, automotive, decorative, and safety glass.
Equipment list
- Glass washing and drying machine
- Glass composite conveyor

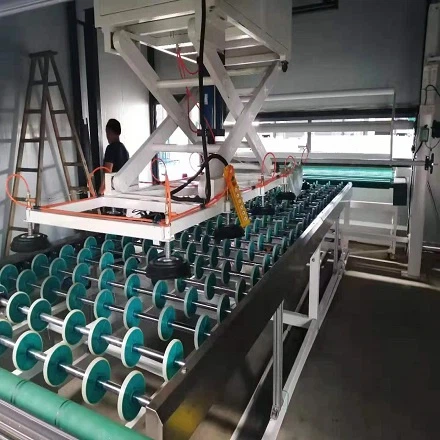

- Walking chuck hanger
- PVB film frame
- Transition conveyor
- Glass flat press machine

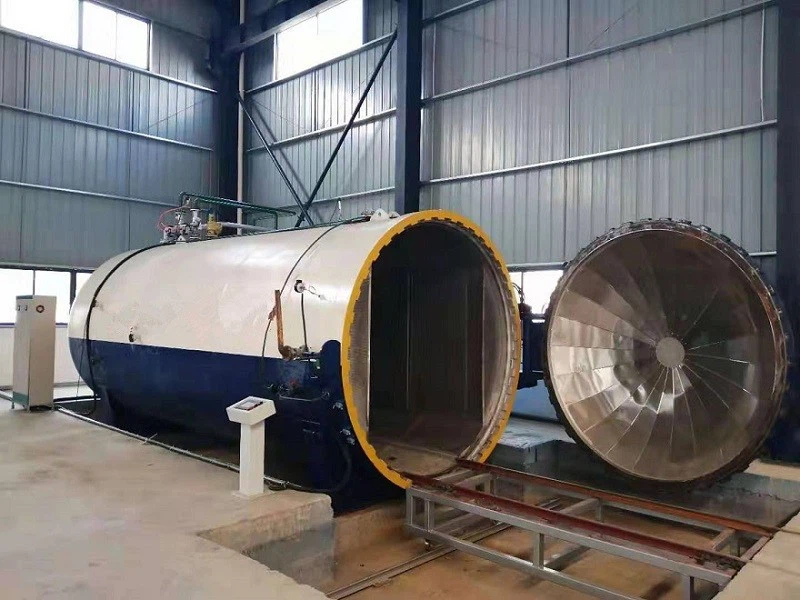

- Glass autoclave
Cleaning and drying → Manual/semi-automatic lamination → Preheating → Pre-pressure degassing → Autoclave heating and pressurization → Cooling and shaping → Finished product output
Advantage
Fully Automated Control System
PLC and touchscreen enable full automation of cleaning, stacking, preheating, flattening, and pressing.
High-Precision Pressing
Multi-stage preheating and flattening ensure uniform stress, producing firmly adhered, consistent-quality glass.
High-Efficiency Production
Sequential conveyors and transitions ensure smooth process flow for large-volume orders.
Reliable and Safe
Traveling brackets, flattening press, and autoclave include safety devices and an emergency stop for operator and equipment protection.
Parameter
|
No. |
Content |
Technical parameter |
|
1 |
Normal glass size |
2500x4200mm |
|
2 |
Large glass size |
2500x6000mm |
|
3 |
Minimum glass length |
420mm |
|
4 |
Minimum glass width |
300mm |
|
5 |
Thickness of glass |
3-19mm |
|
6 |
Working pressure |
0.4-0.6Mpa |
|
7 |
Working temperature |
180～200℃ |
|
8 |
Running Speed |
500-4000mm |
|
9 |
Total length |
27780mm(4heating box-29780mm) |
|
10 |
Total power |
154 kw((4heating box-178kw) |
Product image
Product Details
Our Factory
Scientific equipment layout with clearly designated areas ensures smooth and efficient production.
We provide a dedicated inspection area where customers can visit, test the machine, and conduct on-site acceptance before shipment, ensuring transparency and confidence.

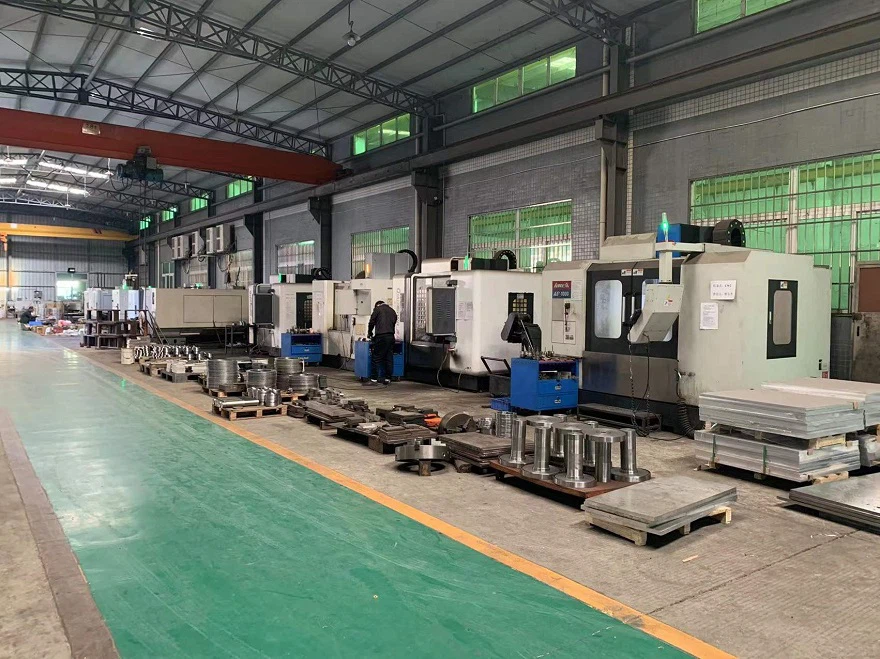

Our workshop is spacious and well-organized, with standardized component placement to ensure efficient production and stable quality control.
Packaging and Shipping
Packaging: container, wooden box
Shipping: by air, sea, or express
FAQ
Q: What types of glass can this production line process?
A: It is suitable for the production of float glass, tempered glass, and laminated glass for architectural, automotive, and decorative applications.
Q: Is the production line complex to maintain daily?
A: Modular equipment layout and standardized component design make maintenance and repair convenient and quick, reducing maintenance costs.
