Glass Laminating Equipment
Glass Laminating Equipment is used to heat and pressurize glass to bond it with interlayer films such as PVB to produce automotive windshields, architectural curtain wall glass, and high-strength safety glass.
Equipment list
- Glass washing and drying machine
- Glass composite conveyor
- Walking chuck hanger
- PVB film frame
- Transition conveyor
- Glass flat press machine
- Glass autoclave
Cleaning and drying → Manual/semi-automatic lamination → Preheating → Pre-pressure degassing → Autoclave heating and pressurization → Cooling and shaping → Finished product output
Advantage
Stable Temperature and Pressure Control System
The autoclave employs a precise temperature zone control and automatic pressure regulation system to ensure a strong bond between the glass and the membrane, preventing bubbles and delamination.
Flexible and Adjustable Production Capacity
Supports different glass sizes and thicknesses, with a maximum glass length of 6000mm, meeting diverse production needs in the automotive, construction, and aerospace industries.
Multi-Layer Material Compatibility
Compatible with various interlayer materials such as PVB and EVA.

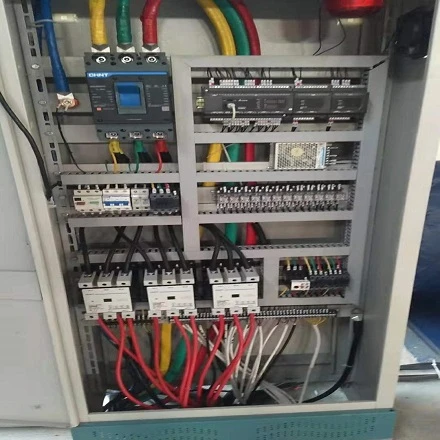

Automated Control
PLC centrally monitors temperature, pressure, and operating status, improving production stability and efficiency.
Parameter
|
No. |
Content |
Technical parameter |
|
1 |
Normal glass size |
2500x4200mm |
|
2 |
Large glass size |
2500x6000mm |
|
3 |
Minimum glass length |
420mm |
|
4 |
Minimum glass width |
300mm |
|
5 |
Thickness of glass |
3-19mm |
|
6 |
Working pressure |
0.4-0.6Mpa |
|
7 |
Working temperature |
180～200℃ |
|
8 |
Running Speed |
500-4000mm |
|
9 |
Total length |
27780mm (4heating box-29780mm) |
|
10 |
Total power |
154 kw (4heating box-178kw) |
Technical Design Diagram

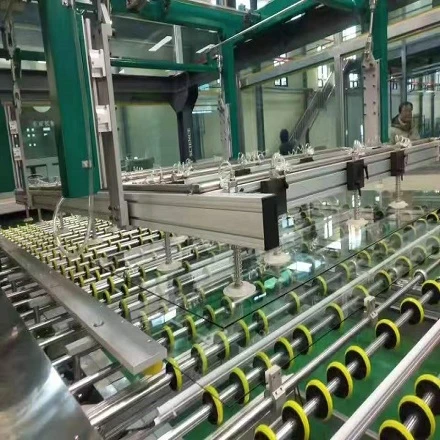

Product Details
Our Factory

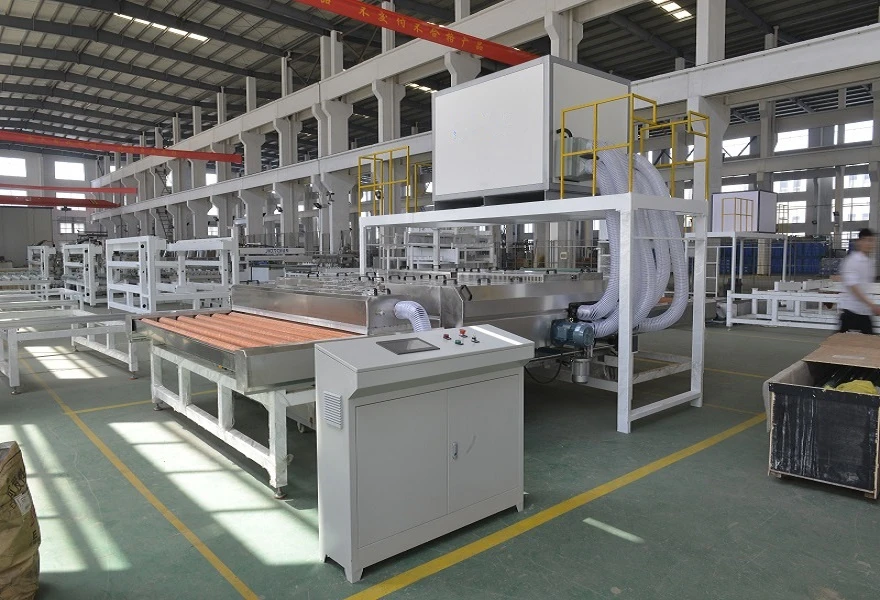

Standardized Production Workshop
Scientific equipment layout with clearly designated areas ensures smooth and efficient production.
Clean and Orderly Processing Environment
A clean workshop with standardized management guarantees high precision and consistent quality.

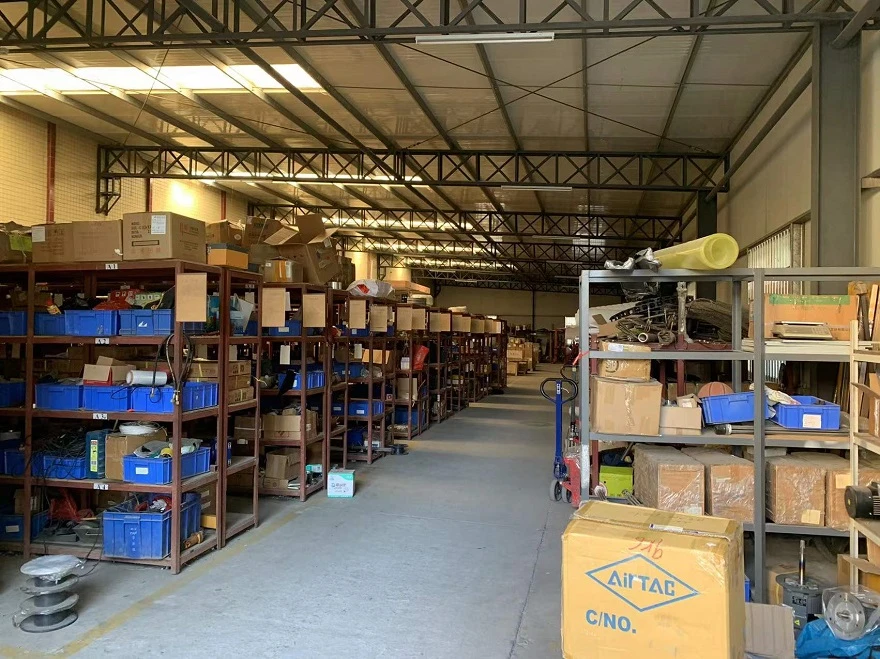

Efficient Warehouse Management
A well-organized warehouse with clear material classification enables fast retrieval and efficient workflow.
Packaging and Shipping
Packaging: container, wooden box
Shipping: by air, sea, or express
We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation, and bulk delivery at the shipping port.
Our Advantage
Quality Assurance
Quality is our top priority, with advanced production equipment and strict testing and control systems to ensure stable and reliable performance.
Professional Customer Support
A strong service team is available at any time to provide full support, adhering to the principle that the customer comes first.
Fast Response Service
Our online support team responds to any email or message within 24 hours.
Competitive Pricing
As a professional glass machinery manufacturer in China, we eliminate middlemen, offering the most competitive prices directly to customers.
FAQ
Q: What is the main function of this glass laminating equipment?
A: It is used to bond glass with PVB or EVA interlayer films through heating and pressing, producing high-strength laminated safety glass.
Q: Which industries is this equipment suitable for?
A: It is suitable for automotive windshields, architectural safety glass, aerospace laminated glass, and bulletproof or impact-resistant glass manufacturing.
