Glass Cleaning And Drying Machine
Glass cleaning and drying machines efficiently clean and rapidly dry architectural, low-emissivity, insulated, and tempered glass, making them good for high-volume production and industrial applications.
Machine Sections
- Glass Loading Section: Smooth feeding of glass into the machine.
- Pre-Wash Section: Rinsing with water nozzles for initial cleaning.
- Brush Washing Section: Three pairs of brushes with water tanks and heaters for thorough cleaning.
- Air Drying Section: Air knives with a blower dry glass efficiently.
- Glass Unloading Section: Smooth transfer to the next process.
Feature
Durable Aluminum Structure - Lightweight yet robust, corrosion-resistant design.
Stainless Steel Water Contact Parts - All machine covers and water-contact components are stainless steel for rust resistance and long-lasting durability.
3-Pair Brush System - Ensures thorough cleaning of glass surfaces without scratches.
Efficient Rinsing - Equipped with high-efficiency spray nozzles in all rinsing areas to minimize water usage while achieving optimal cleaning results.

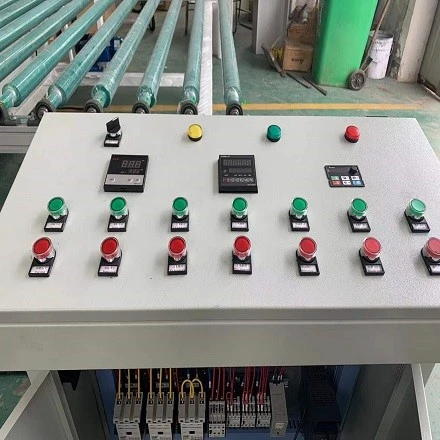

PLC Intelligent Control - Touchscreen interface with programmable settings for different glass types.
Waterproof System - Rubber bars, rubber pads, and stainless steel structure prevent water leakage effectively.
High-Speed Cleaning - Adjustable speed from 1–12 m/min to meet different production requirements efficiently.
Protected Transmission - Chains, gears, belts, and other driving components are covered.
Product Parameter
|
No |
Max glass size |
2440mm |
|
1 |
Min glass size |
300*450mm |
|
2 |
Thickness |
3-19mm |
|
3 |
Speed |
Thickness of glass: 5mm, Vmax=12m/min Thickness of glass: 6-25mm, Vmax=6-8m/min |
|
4 |
Total power |
30kw |
|
5 |
Blower power |
22kw +7.5kw |
|
6 |
Brush |
3 pairs of brushes The third upper brush is soft for low-e glass |
|
7 |
Roller diameter |
70mm |
|
8 |
Water tank |
3unit of stainless steel |
|
9 |
Water pump |
3 sets, circulating water |
|
10 |
Air knives |
3 pairs of straight blow knife with inclined mouths |
|
11 |
Screw lifting with a motor |
Motorized up and down in the washing and drying part, can be elevated to a maximum height of 450mm |
|
12 |
Table height |
850±50mm |
|
13 |
Machine size |
L5550*W3200*H900mm |
|
14 |
Weight |
3800kg |
|
15 |
Power supply |
380v, 50hz, 3 phase |
Technical Design Diagram
The diagrams show the views of the glass cleaning and drying machine with overall dimensions, providing a clear visual reference for space planning and installation.

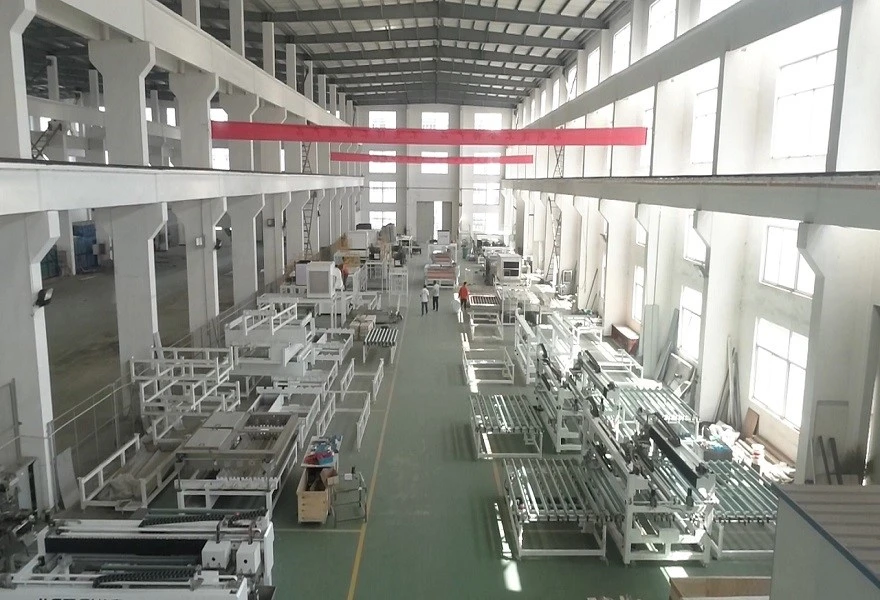

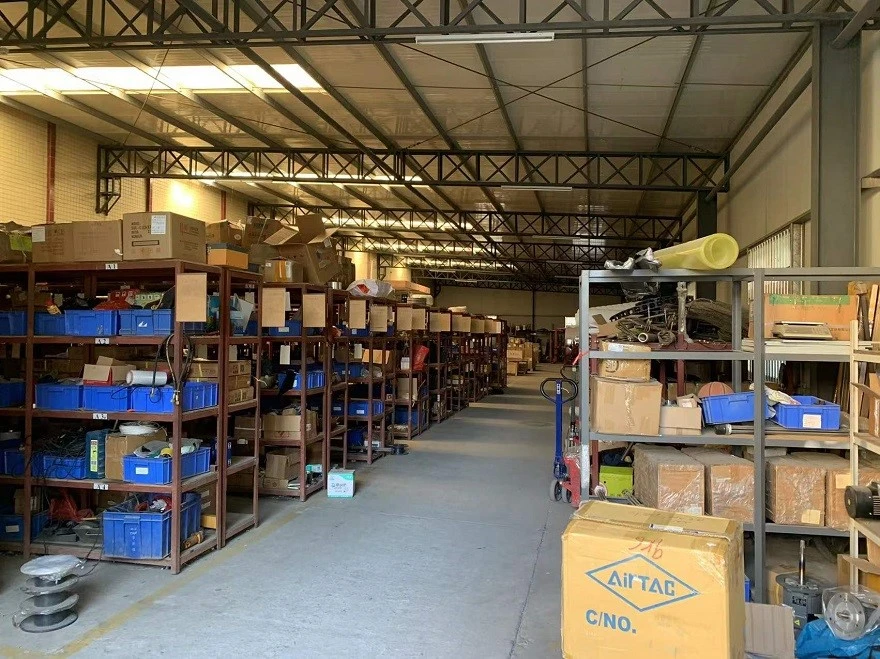

Production Details
Quality control
Strengthen workshop process management and strictly control the processing of each component.
Monitor every production step to ensure high-quality products.
Implement rigorous process quality control, treating product quality as the lifeline of production.
Use materials carefully, emphasize quality, plan production reasonably, and mark components clearly.
Packaging & Shipping
Packaging: Standard export packaging in a container or wooden box. Custom packaging is also available upon request.
Shipping: By sea, air, or express courier.
Delivery Time: Approximately 60–90 days after order confirmation and production details finalized.
FAQ
Q: Is this machine suitable for Low-E glass?
A: Yes, the third upper brush is a soft type, specifically designed to protect Low-E coatings.
Q: Can this machine be integrated with an insulated glass production line?
A: Yes, the unloading section is designed for smooth connection to IG lines.
