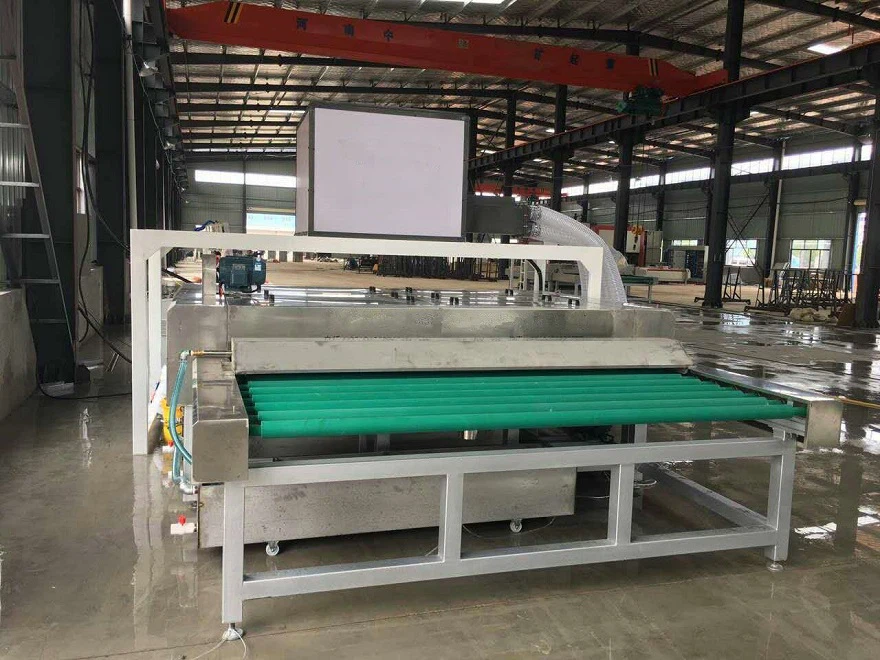

Horizontal Glass Washing And Drying Machine
The horizontal glass washing and drying machine is a high-efficiency cleaning equipment used in industrial glass processing. It is mainly used for cleaning and drying glass surfaces before tempering, edging, and screen printing.
Feature
High-Efficiency Cleaning
Adjustable operating speed from 1–8 m/min to meet the needs of different glass specifications and production lines.
Durable Frame and Superior Materials
The robust, durable aluminum alloy frame, with stainless steel for water-contact parts, is rust-proof and contamination-resistant. NBR rollers ensure smooth conveying.
Stable and Intelligent Transmission
A bevel gear drive combined with frequency-conversion speed regulation ensures smooth and reliable conveying. PLC and touch screen options are available for automated operation.
Water-Saving and High-Efficiency Spraying
High-efficiency nozzle design provides excellent cleaning results with low water consumption. Nozzles can be easily disassembled for maintenance.
Independent Water Circulation and Filtration
Separate zones prevent cross-contamination of dirty water. The water tank is recirculated and equipped with a removable filter, improving water resource utilization.
Waterproof and Safety Design
A combination of rubber strips, rubber pads, and stainless steel prevents leaks. Power components are equipped with protective covers to ensure the equipment's safety and durability.
Parameter
|
No |
Max glass size |
2440mm |
|
1 |
Min glass size |
300*450mm |
|
2 |
Thickness |
3-19mm |
|
3 |
Speed |
Thickness of glass: 5mm, Vmax=12m/min Thickness of glass: 6-25mm, Vmax=6-8m/min |
|
4 |
Total power |
30kw |
|
5 |
Blower power |
22kw +7.5kw |
|
6 |
Brush |
3 pairs of brushes The third upper brush is soft for low-e glass |
|
7 |
Roller diameter |
70mm |
|
8 |
Water tank |
3unit of stainless steel |
|
9 |
Water pump |
3 sets, circulating water |
|
10 |
Air knives |
3 pairs of straight blow knife with inclined mouths |
|
11 |
Screw lifting with a motor |
Motorized up and down in the washing and drying part, can be elevated to a maximum height of 450mm |
|
12 |
Table height |
850±50mm |
|
13 |
Machine size |
L5550*W3200*H900mm |
|
14 |
Weight |
3800kg |
|
15 |
Power supply |
380v, 50hz, 3 phase |
Main electrical component
|
No |
Electrical component |
Brand name |
|
1 |
PLC |
Delta |
|
2 |
Inverter |
Schneider |
|
3 |
Encoder |
Autonics |
|
4 |
Intermediate relay |
Schneider |
|
5 |
Breaker |
Schneider |
|
6 |
DC power source |
Schneider |
|
7 |
Contactor |
Schneider |
Product Details
Our Factory

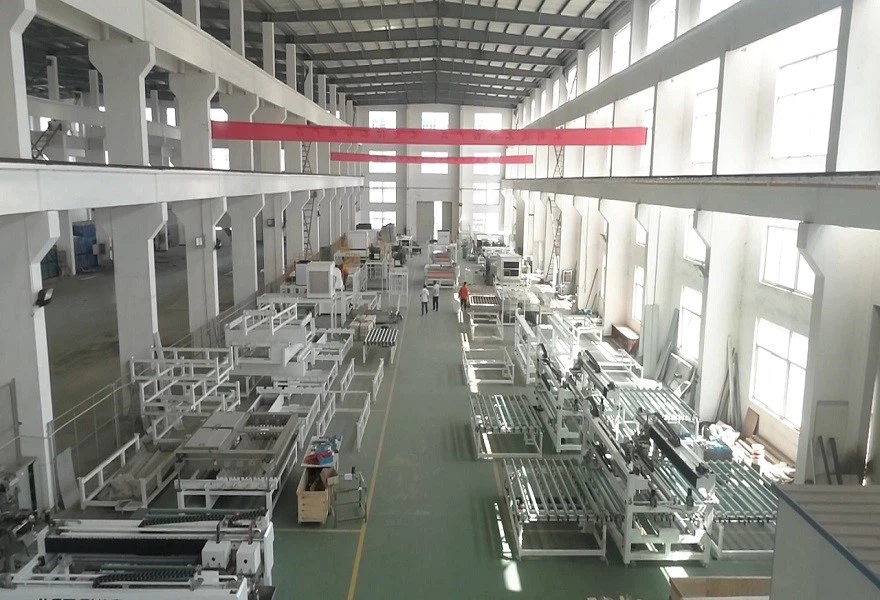

Standardized Production Workshop
Scientific equipment layout with clearly designated areas ensures smooth and efficient production.
Clean and Orderly Processing Environment
A clean workshop with standardized management guarantees high precision and consistent quality.
Refined Production Management
Strict process control from raw materials to finished products ensures stable and reliable quality.
Efficient Warehouse Management
A well-organized warehouse with clear material classification enables fast retrieval and efficient workflow.
Shipping & Delivery
We have extensive international shipping experience and cooperate with globally recognized and reliable shipping companies such as OOCL, Maersk, and MSC, ensuring safe, timely, and cost-effective delivery to customers worldwide.
After-Sales Service
- The whole machine is covered by a one-year warranty to ensure reliable operation.
- 24-hour technical support is available via email and online communication tools.
- User-friendly English software, detailed operation manuals, and instructional videos are provided.
- All necessary spare parts for maintenance are supplied to guarantee long-term performance.
- Our professional after-sales team can provide on-site installation guidance and operator training at the customer's factory if required.
FAQ
Q: What types of glass can this machine process?
A: The machine is suitable for various flat glass types, including clear glass, coated glass, and LOW-E glass, with a dedicated soft brush to protect sensitive surfaces.
Q: How does the machine prevent water contamination between sections?
A: Each washing section is independently separated to avoid dirty water from flowing into other sections, ensuring better cleaning quality.
