Vertical Glass Washing Machine

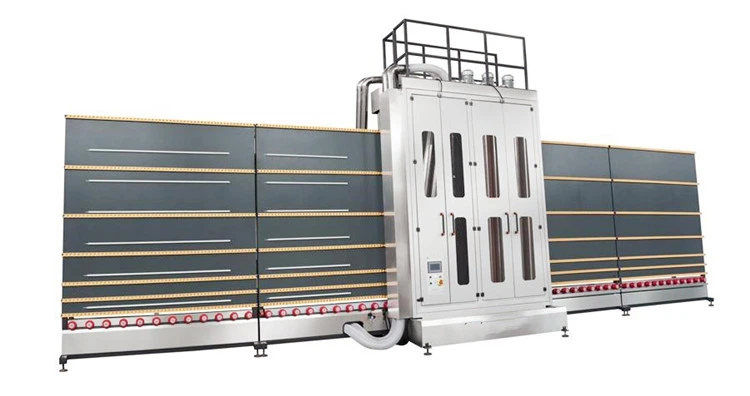

Vertical Glass Washing Machine can be used for architectural glass, laminated glass, shower room glass, Low-E glass, and coated glass, achieving efficient and stable batch cleaning.
Application
Architectural, digital printing, laminated, shower door, and coated glass production
Specification
Glass thickness: 3-19mm
Standard speed: 1-9m/min
Minimum glass size: 400*400mm
Opening system: washing and drying zone
Sturdy electro-welded steel construction treated with anti-corrosion epoxy paint.
Large supporting wheels carry heavy glass, with aluminum wheel seats to prevent rust.
Transmission uses umbrella-shaped gears and nylon wheels for reliable operation and speed control.
45# steel gears combined with high-quality nylon gears for durability, stability, and low noise.
A cover protects the transmission components from dust and damage.
The washing and drying sections can open up to 280mm for easy maintenance.
- Three pairs of brushes, one optional for Low-E glass
- Brush diameter 170mm for better cleaning
- Brush shafts made of stainless steel
- Rollers between brushes ensure smooth transport of small glass
Each brush is driven by a separate motor.
Water tanks feature screen filters (optional fine filters), an automatic float-valve water supply, and high-flow pumps for efficient glass washing.
Large nozzles provide strong water flow and are easily removable for cleaning; stainless steel pipes can be disassembled for maintenance.
Two pairs of slanted air knives wrap around the cabinet, while air recycle pipes enhance airflow to ensure thorough and efficient drying.
The blower cabinet is enclosed with sound-dampening material to reduce noise and comply with standard decibel limits.
A pipe at the back of the drying section recycles air, increasing airflow for thorough glass drying, while the stainless steel pipe near the exit ensures long-lasting durability.
Two control panel options allow adjustment of speed, water/air temperature, and glass thickness.
Electrical components are from well-known brands for stable and reliable operation.
Silicone bars prevent water spillage in the loading zone and reduce noise in the unloading zone; small brushes are optional.
Stairs behind the loading zone and rails on top allow easy inspection.
The machine can be disassembled into five parts (loading/unloading zone, main body, blower cabinet, electrical cabinet, water tank) for easy installation.
The control panel or HMI can be customized with the customer's logo.
All the air pipes are placed at the back of the machine to make it convenient for operations.
Specification
|
Model / Specification |
CSGVW-1600 |
CSGVW-2000 |
CSGVW-2500 |
CSGVW-3000 |
|
Max. Glass Size (mm) |
1600 |
2000 |
2500 |
3000*4000 |
|
Min. Glass Size (mm) |
400x400 |
400x400 |
400x400 |
400x400 |
|
Glass Thickness (mm) |
3~19 |
3~19 |
3~19 |
3~19 |
|
Brush (pair and with Low-e) |
3 |
3 |
3 |
3 |
|
Brush Diameter (mm) |
170 |
170 |
170 |
170 |
|
Hard Brush Diameter (mm) |
0.25 |
0.25 |
0.25 |
0.25 |
|
Soft Brush Diameter (mm) |
0.08 |
0.08 |
0.08 |
0.08 |
|
Speed (m/min) |
1~9 |
1~9 |
1~9 |
1~9 |
|
Blower Heating Power (Kw) |
4.5 |
4.5 |
4.5 |
4.5 |
|
Water Heating Power (Kw) |
12 |
12 |
12 |
12 |
|
Total Power (Kw) |
33 |
36 |
39 |
43 |
|
Voltage/Frequency |
Customized |
|||
Section
Loading and Unloading Zone
- Standard length: 2 meters each for loading and unloading zones, customizable length available
- Sensors in the unloading zone prevent glass from falling
- Emergency stop buttons installed on both sides for safety
- LED lights facilitate glass inspection
Washing Section
- Front of washing section opens up to 200mm for easy cleaning of thick glass and maintenance
- Three pairs of nylon brushes, including an optional soft brush for Low-E glass
- Two water tanks equipped with heaters and filters
- Quick connections for pumps and pipes for easy maintenance
- Optional fine filtration system
- Tanks can use city water or DI water
Drying Zone
- Two pairs of slanted air knives
- Blower supplies hot air for drying
- Air passes through multi-level filters for thorough drying
- Blower mounted on top of the section with platform, stairs, and guardrails
- Optional blower inverter
FAQ
Q: What glass sizes and thicknesses can this machine handle?
A: The vertical glass washer can process glass with a thickness of 3–19mm and a minimum size of 400×400mm. Maximum size depends on the model (up to 3000×4000mm).
Q: Can the machine wash Low-E glass?
A: Yes, an optional soft brush is available specifically for Low-E glass to prevent damage and ensure thorough cleaning.
Q: How is the drying done?
A: The drying zone uses two pairs of slanted air knives and a blower supplying hot air through multi-level filters. Air recycle pipes increase airflow for thorough drying.
Q: Is the machine easy to maintain?
A: Yes, the front of the washing and drying sections can open up to 200–280mm, allowing easy access for maintenance. Water tanks, nozzles, and pipes are removable for cleaning.
Q: Can the machine be customized?
A: Yes, customers can customize the control panel or HMI with their company logo, adjust voltage/frequency, choose optional brush types, blower inverter, and filtration systems.
