As a supplier of CNC diamond milling wheels, one of the most frequently asked questions I encounter is, "What is the maximum depth of cut for a CNC diamond milling wheel?" This question is crucial as it directly impacts the efficiency, quality, and cost - effectiveness of the machining process. In this blog, I'll delve into the factors that determine the maximum depth of cut and provide some practical insights.
Understanding the Basics of CNC Diamond Milling Wheels
CNC diamond milling wheels are essential tools in various industries, especially those dealing with hard and brittle materials such as glass, ceramics, and composites. The diamond particles on the wheel's surface act as cutting edges, enabling precise and efficient material removal. These wheels are used in Computer Numerical Control (CNC) machines, which offer high - precision control over the machining process.
Factors Affecting the Maximum Depth of Cut
Material Properties
The type of material being machined is a primary factor in determining the maximum depth of cut. Harder materials like sapphire or silicon carbide require smaller depths of cut to avoid excessive wheel wear and poor surface finish. Softer materials, on the other hand, can tolerate larger depths of cut. For example, when machining soda - lime glass, a relatively softer material, the wheel can take deeper cuts compared to machining borosilicate glass, which is harder.
Wheel Characteristics
The quality and specifications of the CNC diamond milling wheel play a significant role. The diamond grit size, bond type, and wheel hardness all influence the maximum depth of cut. A wheel with a coarser diamond grit can generally take deeper cuts as it has larger cutting edges. However, a coarser grit may result in a rougher surface finish. The bond type, whether it's resin, metal, or vitrified, also affects the wheel's performance. Resin - bonded wheels are more flexible and suitable for fine - finishing operations, while metal - bonded wheels are more rigid and can handle larger depths of cut in roughing operations.
Machine Capabilities
The CNC machine itself has limitations. Factors such as spindle power, feed rate, and rigidity of the machine structure impact the maximum depth of cut. A machine with a high - power spindle can handle larger depths of cut as it can provide the necessary torque to drive the wheel through the material. Additionally, the feed rate, which is the speed at which the workpiece moves relative to the wheel, must be coordinated with the depth of cut. If the feed rate is too high for a given depth of cut, it can lead to poor surface quality and increased wheel wear.
Cooling and Lubrication
Proper cooling and lubrication are essential for achieving the maximum depth of cut. During the machining process, a significant amount of heat is generated, which can cause the diamond particles to wear prematurely and affect the material's integrity. Using a coolant or lubricant helps to dissipate heat, reduce friction, and flush away the chips. This allows for deeper cuts without overheating the wheel or the workpiece. For instance, in glass machining, a water - based coolant is commonly used to keep the temperature down.
Determining the Optimal Maximum Depth of Cut
Finding the optimal maximum depth of cut is a balance between achieving high productivity and maintaining good surface quality. Here are some steps to determine the appropriate depth of cut:
- Material Testing: Conduct small - scale tests on the specific material to be machined. Start with a shallow depth of cut and gradually increase it while monitoring the surface finish, wheel wear, and machining forces.
- Refer to Manufacturer's Recommendations: The wheel manufacturer usually provides guidelines on the recommended depth of cut based on the wheel's specifications and the type of material. These recommendations are a good starting point for the machining process.
- Consider the Machining Operation: Different machining operations, such as roughing and finishing, require different depths of cut. Roughing operations aim to remove large amounts of material quickly, so a larger depth of cut can be used. Finishing operations, on the other hand, focus on achieving a smooth surface finish, so a smaller depth of cut is necessary.
Real - World Applications and Examples

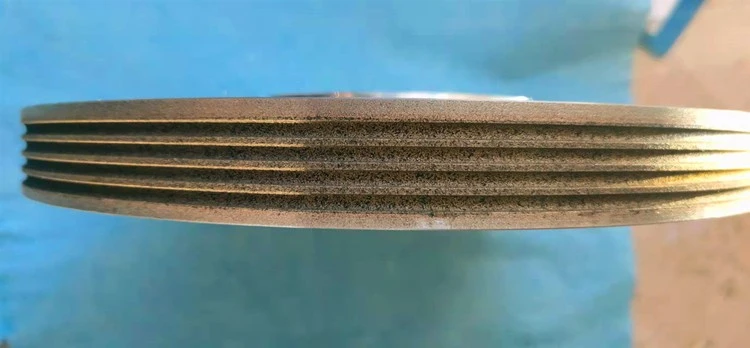

In the automotive glass industry, CNC diamond milling wheels are used for various operations, such as edging and shaping car windshields. When using Car Windshield Removal Tool, the maximum depth of cut is carefully controlled to ensure that the glass is not damaged during the removal process. For solar glass manufacturing, Solar Glass Diamond Grinding Wheels are employed to achieve precise dimensions and smooth surfaces. The maximum depth of cut in this case is optimized to balance productivity and the quality requirements of the solar panels. Similarly, in the production of Automotive Glass Tools, the depth of cut is adjusted according to the specific requirements of the tool.
Conclusion
The maximum depth of cut for a CNC diamond milling wheel is not a fixed value but depends on a variety of factors, including material properties, wheel characteristics, machine capabilities, and cooling and lubrication. By understanding these factors and following the steps to determine the optimal depth of cut, manufacturers can achieve high - quality machining results while maximizing productivity.
If you are in the market for CNC diamond milling wheels or have questions about the maximum depth of cut for your specific application, I encourage you to reach out for a detailed discussion. Our team of experts is ready to assist you in selecting the right wheel and optimizing your machining process.
