How to adjust the height of the cutting tool in a CNC glass cutting machine?

Hey there! As a supplier of CNC Glass Cutting Machines, I often get asked about how to adjust the height of the cutting tool in these machines. It's a crucial aspect that can significantly impact the quality of glass cutting, so I'm here to share some insights and tips on this topic.

First off, let's understand why adjusting the cutting tool height is so important. In a CNC glass cutting machine, the right tool height ensures precise cuts. If the tool is too high, it might not cut through the glass properly, leaving rough edges or incomplete cuts. On the other hand, if it's too low, it could damage the glass or even the machine itself. So, getting that height just right is key to achieving high - quality cuts every time.

Pre - adjustment Checks

Before you start adjusting the cutting tool height, there are a few pre - adjustment checks you should do. First, make sure the machine is turned off and unplugged for safety reasons. Inspect the cutting tool for any signs of damage or wear. A worn - out tool might not cut effectively, even if the height is adjusted correctly. Also, check the glass material you're going to cut. Different types of glass, like tempered glass or float glass, may require different tool heights.

Measuring the Initial Tool Height

To begin with, you need to measure the initial height of the cutting tool. Most modern CNC glass cutting machines come with a built - in height measurement system. You can use this system to get an accurate reading of the current tool height. If your machine doesn't have a built - in system, you can use a precision measuring tool like a micrometer or a feeler gauge. Place the measuring tool under the cutting tool and note down the measurement.

Factors Affecting Tool Height Adjustment

There are several factors that can affect how you adjust the tool height. The thickness of the glass is one of the most important factors. Thicker glass usually requires the cutting tool to be set at a lower height to ensure a complete cut. The type of cutting operation also matters. For example, if you're making a straight cut, the tool height might be different compared to when you're making a curved cut.

Another factor is the speed of the cutting operation. Faster cutting speeds may require a slightly different tool height to maintain the quality of the cut. The condition of the cutting tool itself is also crucial. A sharp tool may need a different height setting compared to a dull one.

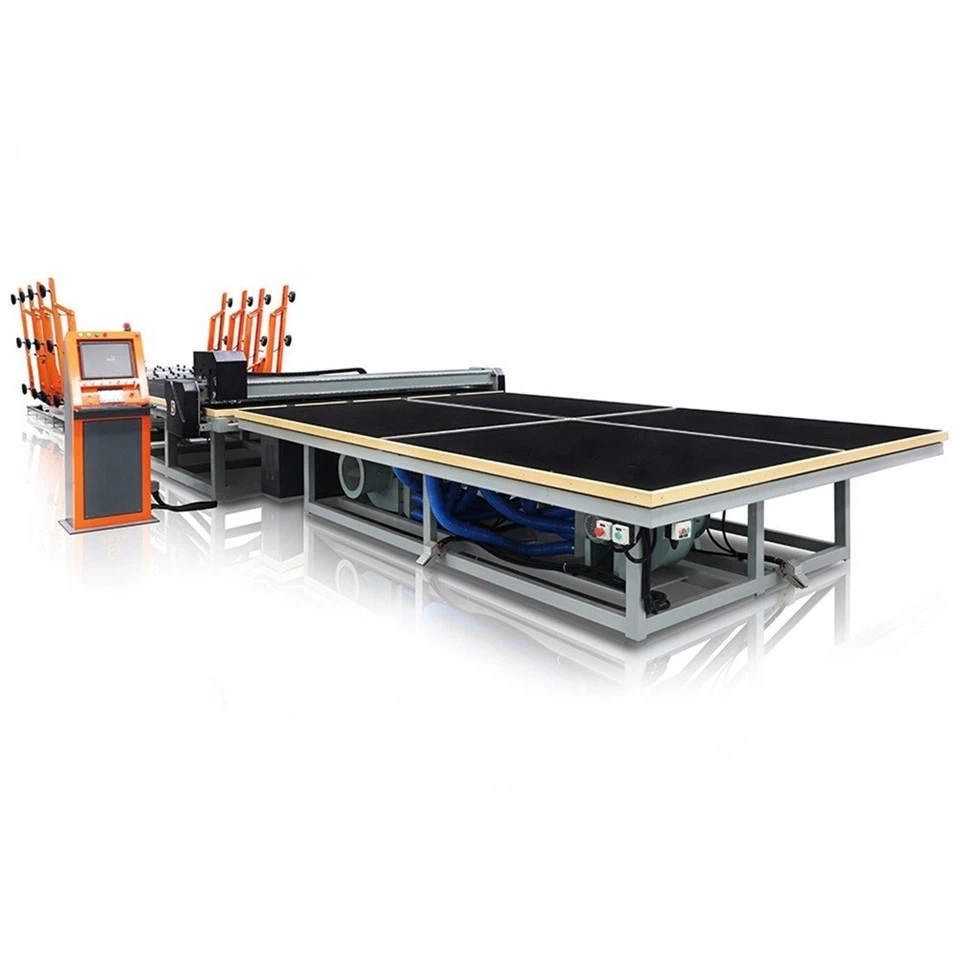

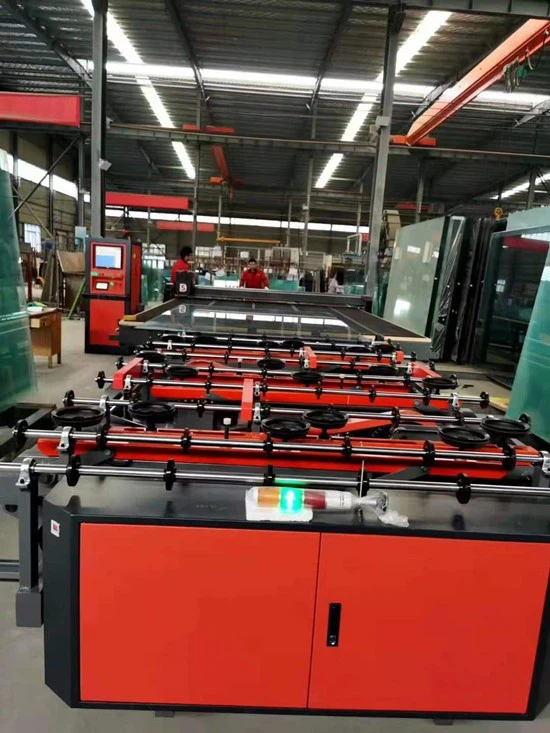

Fully Automatic Glass Cutting Production Line

Adjusting the Tool Height

Now, let's get into the actual process of adjusting the tool height. Most CNC glass cutting machines have an adjustment mechanism. This could be a manual adjustment screw or a digital control panel.

If you're using a manual adjustment screw, you'll need to turn the screw carefully. Turning it clockwise usually lowers the tool, while turning it counter - clockwise raises it. Make small adjustments at a time and re - measure the height after each adjustment. This way, you can avoid over - adjusting the tool height.

For machines with a digital control panel, the process is a bit more straightforward. You can enter the desired tool height value directly into the control panel. The machine will then automatically adjust the tool to the specified height. However, it's still a good idea to double - check the height using a measuring tool after the adjustment.

Testing the Adjustment

Once you've adjusted the tool height, it's important to test the adjustment. Take a small piece of scrap glass and run a test cut. Examine the cut carefully. Look for any signs of incomplete cuts, rough edges, or damage to the glass. If the cut is not satisfactory, you may need to make further adjustments to the tool height.

Fine - Tuning the Adjustment

Fine - tuning the tool height adjustment is an ongoing process. You may need to make small adjustments based on the results of your test cuts. Keep in mind that factors like the temperature and humidity in the cutting environment can also affect the quality of the cut. So, you might need to make additional adjustments over time.

Importance of Regular Maintenance

Regular maintenance of your CNC glass cutting machine is essential for accurate tool height adjustment. Make sure to clean the machine regularly, especially the parts related to the tool height adjustment mechanism. Lubricate the moving parts as recommended by the manufacturer. This will ensure that the adjustment mechanism works smoothly and accurately.

Our Product Offerings

As a supplier, we offer a range of high - quality CNC glass cutting machines. Our CNC Glass Cutting Machine is designed with precision and efficiency in mind. It comes with advanced features that make tool height adjustment easy and accurate.

We also have the High Quality Water Jet Machine, which is a great option for cutting different types of glass with high precision. And for those looking for a complete solution, our Fully Automatic Glass Cutting Production Line can streamline the glass cutting process and improve productivity.
